VP2430 – 4x 2.5G Port Intel® N150

$439.00 CAD

    • Intel® N150 Quad Core CPU (6MB Cache, up to 3.6GHz)
    • 4x Intel® I226-V 2.5Gigabit Ethernet NIC ports, RJ-45
    • SO-DIMM DDR5-4800 compatible (Up to 64GB)
    • M.2 2280 M-Key NVMe Slot (PCIe Gen 3 x2)
    • M.2 2230/3052 E-Key WiFi slot (PCIe Gen 3 x1)
    • M.2 3052 B-Key slot for LTE/5G Modems
    • 32 GB eMMC storage module on board
    • coreboot supported
    • Small, compact form factor, Fanless and Silent
    • Component heatsink, NVMe heatsink, and thermal pads

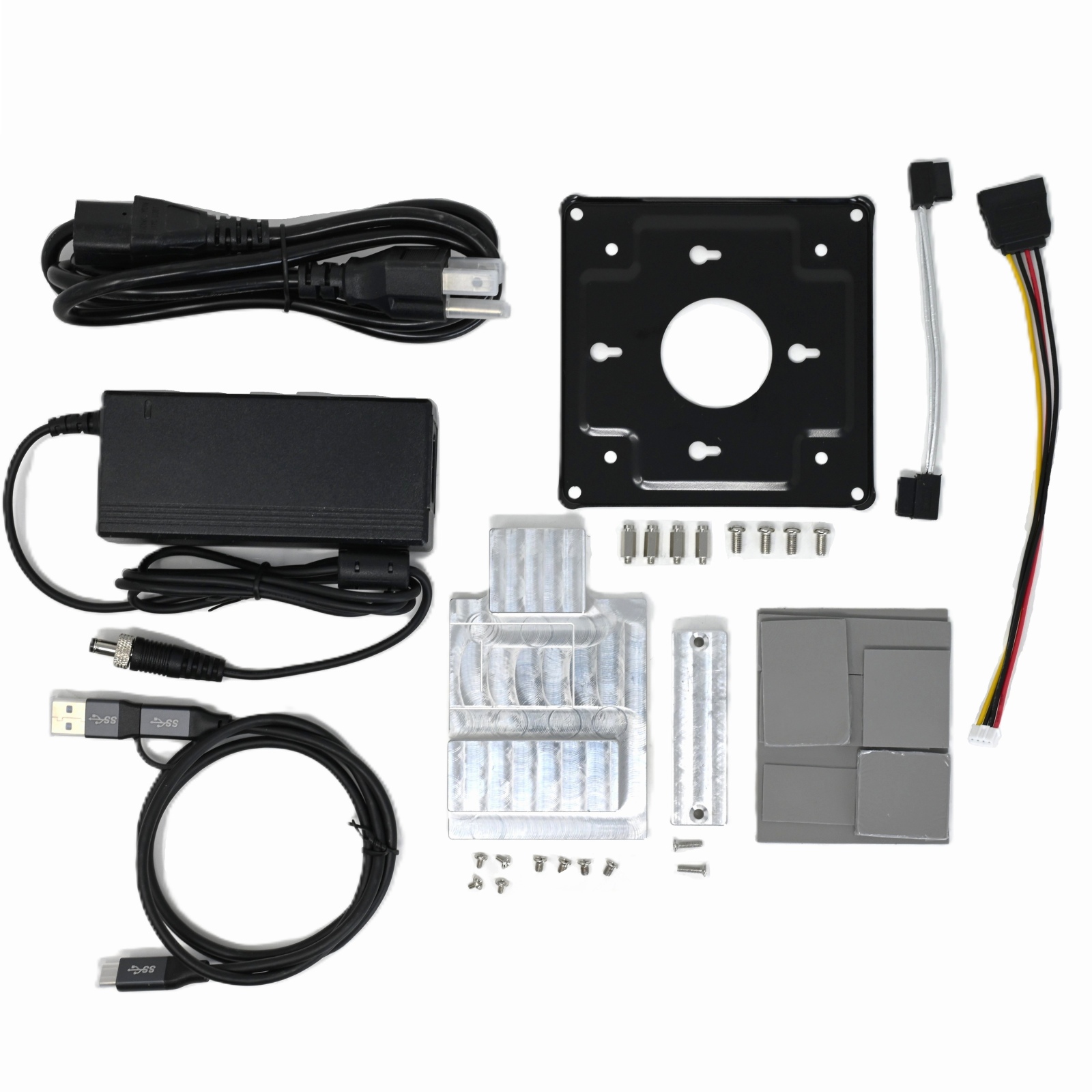

    • Included 12V @5A (60W) Power Supply with screw-in connector, SATA cables, USB-C Console Cable (with USB-A adapter), VESA mount

Click here for more info.

SKU: VP2430 Categories: ,

Description

The Vault Pro VP2430: Compact, Powerful, and Efficient

The Vault Pro VP2430 is a fanless, OS-agnostic mini PC designed for firewalls, routers, VPNs, virtualization, homelabs, and professional environments. As the latest addition to the Vault Pro series, it builds on the success of the VP2410 and VP2420, offering enhanced performance, improved thermal management, and expanded networking capabilities.



Powered by an Intel® N150 Quad-Core CPU, the VP2430 is equipped with 4x 2.5GbE network ports and supports WiFi 6E cards, 4G/5G modems, NVMe SSDs, and up to 64GB of DDR5 RAM*, providing exceptional speed and efficiency for demanding workloads. The onboard 32GB eMMC module offers flexibility for lightweight OS installations or extra storage, while the VP2430’s onboard headers enable the ability to support use cases that require GPS, time synchronization, or other sensors.



The fully aluminum chassis acts as a passive heatsink for silent operation and durability, even in less-than-ideal environments. A modular heatsink and finned-aluminum bottom plate maximize heat dissipation while internal heatsinks cool NVMe SSDs, RAM, WiFi cards, and modems, reducing temperatures of installed components upwards of ~30% under heavy usage. The modular heatsink design also allows for easy removal of the large component heatsink to accommodate a 2.5″ SATA SSD for additional storage.

For full technical details, including pin layouts, please refer to the VP2430 Hardware Overview.

*Intel® Specsheets claim the N150 CPU officially supports up to 16GB of RAM, but we have successfully tested and qualified multiple modules above that capacity. Information on modules we have successfully tested can be found here.

Optimized for OS and Component Compatibility

The VP2430 is thoroughly tested and qualified with a variety of operating systems and components to ensure optimal compatibility. For a list of tested OSs and components, please refer to this link.

Security at the Core with Custom coreboot Firmware

Designed with security in mind, the VP2430 runs on Protectli’s custom coreboot firmware, an open-source alternative to proprietary BIOS solutions. This purpose-built firmware enhances security, performance, and system reliability, ensuring a trustworthy platform. More information on coreboot can be found here.

Unrivaled Support & Global Presence

All Protectli Vaults are backed by our industry-renowned support team, based in the United States, with additional locations in Canada and Germany. Whether you’re a professional securing a network or an enthusiast customizing a homelab, expert assistance is always within reach.

Start configuring your Vault now!

Product Specifications

ModelVP2430
Description4 x 2.5GbE Network Port Fanless Appliance
ProcessorIntel® N150 Quad Core Processor (6MB Cache, up to 3.6GHz)
Microarchitecturex86_64-v3
Processor Cores4
Processor Threads4
Intel® AES-NISupported
VirtualizationIntel® Vt-x, Vt-d
Network4x Intel® I226-V 2.5G Ethernet, RJ-45
Video / GraphicsIntel® HD Graphics GPU, 24 Execution Units, Max Dynamic Frequency 1GHz, HDMI 2.0, DP 1.2
Max Resolution3840 x 2160 @60hz
AudioAudio over HDMI, Display Port, and USB-C Display Port
Memory1x SO-DIMM DDR5-4800, Max 64GB
Onboard Storage1x M.2 2280 NVMe, 1x 32G eMMC on board
Optional Additional Storage1x Internal 2.5” SATA 3.0 SSD
External I/O4x RJ-45 Ethernet ports
4x USB 2.0 Type-A
2x USB 3.2 Gen 2 Type-C w/ Display Port
1x USB Type-C COM Port
1x HDMI 2.0 port
1x Display Port 1.2
1x Nano (4FF) SIM Holder
8x WiFi/LTE Antenna Mounting Holes
1x 12V DC Power Jack
Internal I/O1x M.2 2280 M-Key PCIe 3.0 x2 (NVMe)
1x SATA Header, 1x SATA Power
1x M.2 2230/3030/3052 E-Key PCIe 3.0 x1 (WiFi)
1x M.2 3052 B-Key USB 3.2 Gen 1 (4G/5G Modem)
1x CPU Fan Header (4 pin) (1.25mm pitch)
1x JNTP1 Header (NTP/i2c) (4 pin) (1.25mm pitch)
1x GPIO Header (2x3 pin) (2.54mm pitch)
1x eSPI Header (2x5 pin, pin 10 clipped) (2.00mm pitch)
1x RS-232 COM Header (2x5 pin, pin 10 clipped) (2.00mm pitch)
1x Front Panel Header (2x5 pin, pin 10 clipped) (2.54mm pitch)
1x CMOS Reset (2 pin)
1x BIOS Programming Header (Two separate 1x4 pin) (2.00mm pitch)
Super I/O ChipIT8659E
BIOSAMI® or coreboot
Indicators1x LED Power Button (Blue), 1xLED Power Indicator (Green), 1x LED SSD Activity Indicator (Yellow)
PowerInput 12V DC, 1x DC Power Jack
Power UsageMax 45W
ChassisFanless, Aluminum, Gray
Chassis Dimensions144mm x 143mm x 55mm
Mounting OptionsDesktop, VESA Bracket, Optional 1RU Rack Mount
Weight2lbs, 10 oz, (1.19kg)
Shipping Weight4 lbs 2.6 oz, (1.97kg)
Operating Temperature+14° - +122° F, -10° - +50° C
Operating Humidity0 – 95% relative humidity, non-condensing
ApprovalsUL (Power Supply), FCC Part 15 Class B, CE, RoHS
Country of OriginMade in China, Assembled in USA, Canada, or Germany
Optional WiFi1x M.2 2230/3030/3052 E-Key PCIe 3.0 x1 (WiFi)
Optional LTE Cellular1x M.2 3052 B-Key PCIe 3.0 x1 or USB 3.2 Gen 1 (4G/5G)
Optional TPM1x Trusted Platform Module, TPM 2.0
